Vibrational Isolation System

Introduction

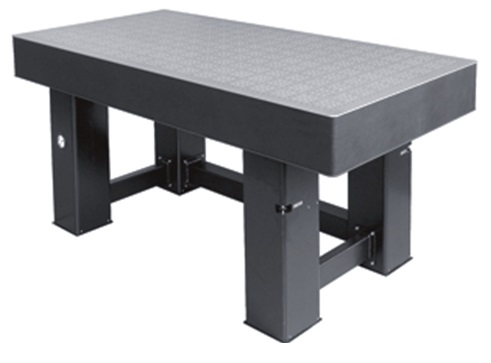

Optical Table Tops provide the base on which precision optical and laser work is performed. Standard Honeycomb Tabletop consists of a 5 mm thick cold-rolled stainless ferromagnetic steel top skin, and 3-6 mm thick bottom skin, both bound under high pressure to a honeycomb core, using a special epoxy resin. Thickness of the skin depends on the dimensions of the table top. The side-walls of the table top are made of a special acoustically hollow plastic which damps acoustic vibrations and covered in a decorative black leather substitute.

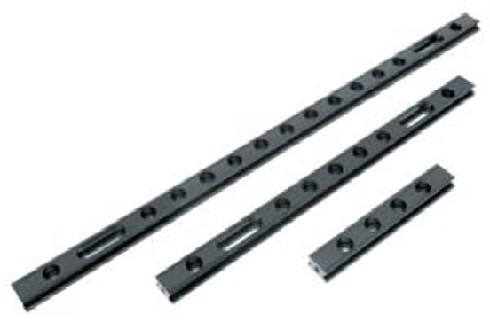

Narrow Aluminium Optical Rail Optical rail system, small optical rails, available in sizes from 75 mm (3'') to 600 nm (24''), compact low-profile dovetail design, precision CNC machined on all surfaces.

Vertical Positioner The Vertical Positioner has one mounting surface with M6 tapped holes. It provides coarse and smooth vertical positioning of mounted components.

Silent Rods Great stiffness, sturdiness and strength of steel allow the Silent Rods to support large loads with great stability. Each rod has M6 tapped holes on, and a groove around both ends.

Standard Rods These 12 mm diameter stainless steel rods have M6 male threads on the top and M6 tapped holes on the bottom. This allows to mount all accessories directly on the rod.

Rod Holders The Rod Holders provide convenient and reliable model rod mounting and positioning at fixed height.

Universal Adjustable Lens/Optics Mounts Universal Adjustable Lens/Optics Mounts are used to accommodate any round and any thickness objects as lenses, mirrors and lasers.

Self-Centering Large Aperture Optical Mount Tilt/tip range +- 2 deg., great variety of optics diameters can be used with this mount, linear adjustment of X axis is possible on request.

Miniature Kinematic Mirror / Beam splitter Mount Precise and handy two orthogonal angular adjustments, for Ø 12.7 mm optics (0.5 inch), kinematic, clear edge design and sensitivity of 8 arcsec.

Large Aperture Optical Mount The Large Aperture Optical Mount ,it has a Ø31.8 mm aperture, while on its platform has a Ø51 mm aperture and six M4 mounting holes.

Multi-Axis Tilt Platform The Multi-Axis Tilt Platform provides angular adjustment about two axes - tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by two micrometers.

Precision Translation Stages Precision translation stages provide smooth and precise platform movement along one axis.

Vertical Translation Stage Vertical Translation Stage boasts our unique design. Being very compact, it provides smooth and stable adjustment of height.

Motorized Vertical Translation Stage This Motorized Vertical Translation Stage boasts our unique design. Being very compact, it provides smooth and stable adjustment of height. It has a large travel range and supports large loads.
