Thermal Clip On Sights

Introduction

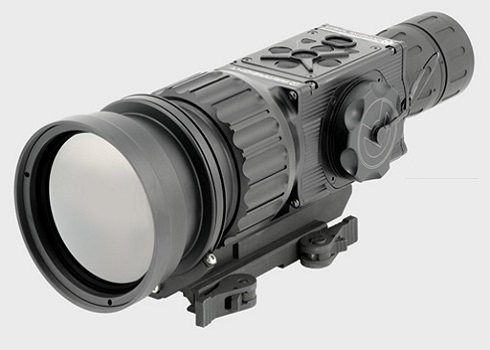

The Apollo Pro family of Clip-on Thermal Imaging Devices is a premier day/ night thermal clip-on product displaying the best and latest in advancements developed by Armasight in the field of uncooled thermal imaging technology for the dismounted soldier and  law enforcement personnel. The Apollo Pro is as per Armasight 20/50-design gold standard, which is defined from product inception as being capable of withstanding 20 meters immersion for 2 hours, and engineered for routine use with 0.50 BMG weapon shock and recoil. Based around common core electronics, signal processing, and infinity focused large-format collimating eyepiece, the Apollo Pro Series Day/ Night Clip-on Thermal Imaging Device is available in a variety of options

The Apollo Pro is a solid state, uncooled, long-wave infrared, 1X (unity magnification) Clip-on Thermal Imaging Device for day and night engagements. It mounts directly in front of the variable magnification sniper day sight without the need to remove the day sight from the weapon. Collateral applications of the Apollo Pro Thermal Imaging Device include functionality as a unity magnification (1x) stand-alone weapon sight and handheld uncooled thermal monocular. For the collateral duty functions, Armasight has included a compass and inclinometer in the Apollo Pro package for finer range estimation and target orientation. A five-button wireless remote switch is included to operate and modify the settings on the Apollo Pro to optimize the imagery for the viewed scene without having to remove your hands from the weapon. The Apollo Pro has Bluetooth© wireless capability and can directly interface with most smart phones with the potential for engaging a series of current and future applications.

Utilizing the FLIR TAU-2 Technology, the Apollo Pro is offered in 336x256 and 640x512 pixel formats. These options are further enhanced by professional military-grade 30mm, 50mm, 100mm Germanium (Ge) objective lenses, creating a wide variety of range performance options optimize the user’s experience with this magnified day sight.

Armasight has introduced a unique dual battery option for the Apollo Pro Clip-on Thermal Imaging Device, consisting either of four 3.0VDC 123A batteries (all oriented in the same direction to prevent confusion in replacement), or four 1.5VDC AA batteries pre-loaded in a cartridge. In a pinch, the Apollo Pro special power-management feature allows the use of a single 3.0VDC 123A battery for just over an hour.

The Apollo Pro uses the same 9-pin multi-pin connector to provide video-in imagery, where there may be a need for map or rangefinder display overlays, and external power access. In support of these capabilities, Armasight offers an optional laser range-finder, external battery pack, multispectral laser and other accessories designed to attach on the MIL-STD-1913 rail of the Apollo Pro to feed the desired overlay or input power into the Clip-on Thermal Imaging Device. The 9-pin connector is also capable of providing a portal for periodically upgrading the Apollo Pro software directly; as new revisions become available, users can download updates directly from the internet.

Apollo Pro weapon installation is easy, repeatable, and reliable based on a user-friendly MILSTD- 1913/ Weaver/Picatinny rail compatible, quick-release locking mechanism. This device when used in the collateral role of a 1X stand-alone weapon sight, ensures maximum reticle contrast, high-level target accuracy, and boresight retention that cannot be achieved with mechanical boresight adjusters and traditional ballistic drums. This level of accuracy is translated into the tracking electronic zoom (e-zoom) function of the Apollo Pro, when used as a 1x weapon sight, which can be progressively increased from 1x to 2x to 4x and 8x (640x512 format only) without changing the point-of-aim to point of-impact relationship of the targeting reticle.
